The histology platform of the ORION technology center offers a whole range of equipment open to Collège de France staff and to university and external staff. It also provides training, advice and expertise in histology.
You are encountering a technical problem on a microscope ? Please call from any land-line phone of the institute:
1287
We will do our best to help you out.
- All
- Cutting Machine
- Paraffin Machine
- Laser microdissection
- Slide scanner

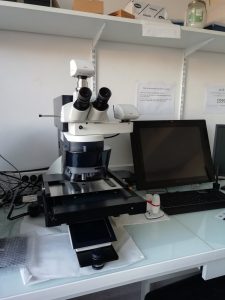

Laser Microdissection LMD7000 (Room 316)
Laser microdissection allows the isolation of specific single cells or whole tissue areas.
It is generally used in genomics (DNA), transcriptomics (mRNA, miRNA) and proteomics.
Lenses :
-5x / 0,12 WD: 11,7mm
-10x / 0,3 WD: 11 mm
-20x / 0,4 WD: 6,9 mm PH1
-40x / 0,6 WD: 3,3-1,9 mm PH2
-63x / 0,7 WD: 2,6-1,8 PH2
-150x / 0,9 WD: 0,25mm
Filters :
– DAPI
– CFP
– GFP
– CY3
– CY5
– BH/PH
Cameras :
-DFC 360 FX / CCD / pixel size: 6,45*6,45 µm
-DFC 310 FX / CCD color / pixel size: 6,45*6,45 µm

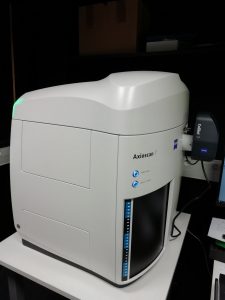

Slide Scanner Axioscan 7 (Room 319)
The slide scanner allows the scanning of high-resolution histological sections, in brightfield, polarised light and fluorescence, in order to obtain an overview of the biological tissue.
Lenses :
-5x / 0,15 WD: 12 mm
-10x / 0,45 WD: 2,1 mm
-20x / 0,8 WD: 0,55 mm
-40x / 0,95 WD: 0,25 mm
Fluorescent filters :
-DAPI
-CFP
-GFP
-YFP
-CY3
-CY5
-CY7
Cameras :
-Axiocam 705 color / CMOS / 3,45*3,45 µm
-Axiocam 712 mono / CMOS / 3,45*3,45 µm
